Description

MiniCODER comfort GEL 2444K Speed and position sensor with sin/cos and reference output

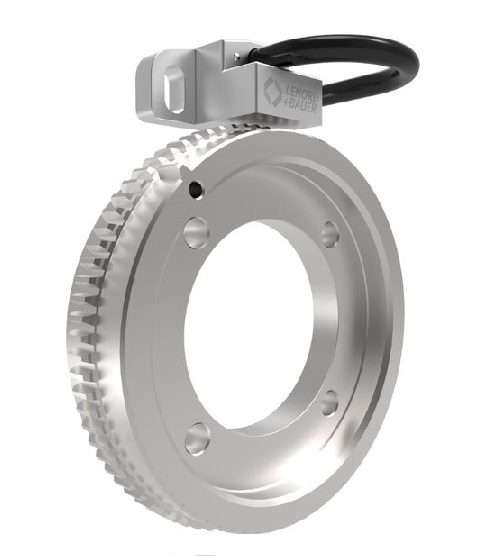

The measuring unit comprises a sensor and a precision
target wheel for attachment to shafts with a shaft diameter from 8 mm to over 500 mm
Rotational speed and position acquisition by means of
contactless scanning of precision target wheels using
magnetoresistive sensor elements.
Output signals are two sinusoidal signals offset by 90°
for the detection of direction (tracks 1 and 2) and their
inverse signals, optionally with reference pulse (track N).
High resolution and accuracy of the incremental hollow
shaft measuring system by interpolation of the sensor
signals.
Safety integrated certificate.

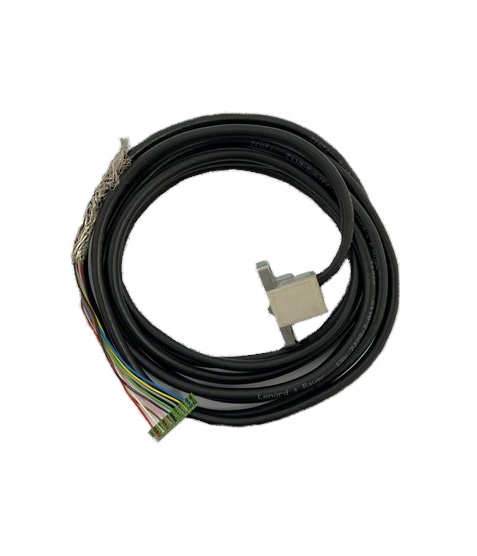

Cable length 250cm
